Grade R 1 / 4 Inch X 25 FT  Twin Welding Hose With Brass Fittings , Long Life

Grade R 1 / 4 Inch X 25 FT Twin Welding Hose With Brass Fittings , Long Life

  • High Light

    T Grade Welding Hose

    ,

    Welding Gas Hose

  • Material
    EPDM
  • ID Size
    6.3mm +/-0.3
  • OD
    13mm +/-0.5
  • Working Pressure
    20bar (300psi)
  • Burst Pressure
    60bar (900 Psi)
  • Reinforcement Layer
    High Tensile Polyester Fiber Braided
  • Color
    Red & Green, Red & Blue
  • Temperature Range
    -25°C To 80°C
  • Length
    25FT
  • Certificates
    CE, ISO
  • Packing
    Wrapped By OPP Film, Customized Packing Is Available
  • Main Market
    Middle East, European & American
  • Surface
    Smooth Finish
  • Connectors
    Brass Adapter (G9/16''-18N)
  • Quality Level
    Grade R
  • Process
    Extrusion
  • Standard
    BS EN559 / ISO 3821
  • Place of Origin
    Zhejiang China
  • Brand Name
    PASSION
  • Certification
    CE
  • Model Number
    1/4'' * 25FT
  • Minimum Order Quantity
    200 pcs
  • Price
    Negotiated
  • Packaging Details
    Wrapped by transparent OPP film, pallet, color packing can be customized
  • Delivery Time
    20 days after received the advance payment
  • Payment Terms
    T/T, LC, Paypal, MoneyGram or Western Union
  • Supply Ability
    20,000 pcs per month

Grade R 1 / 4 Inch X 25 FT Twin Welding Hose With Brass Fittings , Long Life



Grade R 1 / 4 Inch x 25 FT Twin Welding Hose With Brass Fittings



Specifications:



Inner Diameter Outer Diameter Working Pressure Burst Pressure Length Measurement Weight
inch mm mm bar psi bar psi FT cbm/roll Kg/roll
3/16"&3/16" 4.8 11.5 20 300 60 900 25 0.0048 2.5
3/16"&3/16" 4.8 11.5 20 300 60 900 50 0.009 4.0
3/16"&3/16" 4.8 11.5 20 300 60 900 100 0.018 8.0
1/4"&1/4" 6.4 13 20 300 60 900 25 0.005 2.9
1/4"&1/4" 6.4 13 20 300 60 900 50 0.01 5.5
1/4"&1/4" 6.4 13 20 300 60 900 100 0.02 11
5/16"&5/16" 7.9 15 20 300 60 900 25 0.007 3.45
5/16"&5/16" 7.9 15 20 300 60 900 50 0.012 6.8
5/16"&5/16" 7.9 15 20 300 60 900 100 0.022 13.5
3/8"&3/8" 9.5 17 20 300 60 900 25 0.009 4.3
3/8"&3/8" 9.5 17 20 300 60 900 50 0.015 8.1
3/8"&3/8" 9.5 17 20 300 60 900 100 0.024 15.9



Description:



1, Construction: Tube: SBR Synthetic Rubber

                           Reinforcement: High tensile polyester fiber braided.

                           Cover: SBR Synthetic Rubber



2, Appearance:  Smooth

                          Green or blue for oxygen rubber hose

                          Red outer for  fuel gas hose, e.g. acetylene

3, Applicable temperature: -25°C to +80°C



4, Standard length: 25FT / 50FT / 100FT



5, Bend radius: 10 times of proper diameter dimension



6, Package:     Common packed by OPP transparent film.

The pallet and woven bag packing are available, the color sticker can be offer,

 but shall be charged additionally.



7, Trademark: PASSION, OEM is available



8, Property: Anti-ozone aging, Heat-proof aging, Corrosion resistance and excellent flexibility.



9, Certificates: CE, SGS, ISO



10, Main market: Middle East, Europe and America

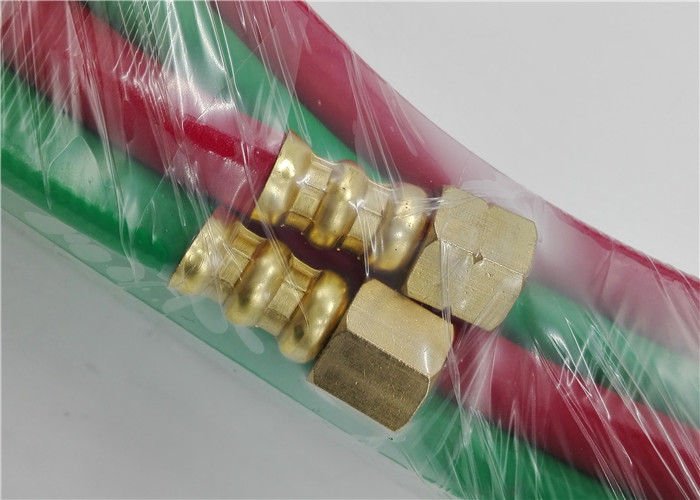

11: Joint Connection:

                            Brass teeth of metric system (M16x1.5), applied to Chinese Mainland;

Brass teeth of British system (G3/8-19N), Britain and Hong Kong etc

Brass teeth of American system (G9/16 18N), America, Middle East and South America

 etc.

Australian system (5/8-18N), Australia etc









Grade R 1 / 4 Inch X 25 FT  Twin Welding Hose With Brass Fittings , Long Life 0

Grade R 1 / 4 Inch X 25 FT  Twin Welding Hose With Brass Fittings , Long Life 1

Applications:



Mainly used for oxygen / acetylene gas welding; inert gas (such as argon gas and helium gas etc.)
