Flexible Gasoline Pump Hose , High Temperature Rubber Hose For Service Station Application

Flexible Gasoline Pump Hose , High Temperature Rubber Hose For Service Station Application

    • Flexible Gasoline Pump Hose , High Temperature Rubber Hose For Service Station Application
    • Flexible Gasoline Pump Hose , High Temperature Rubber Hose For Service Station Application
    • Flexible Gasoline Pump Hose , High Temperature Rubber Hose For Service Station Application
  • Flexible Gasoline Pump Hose , High Temperature Rubber Hose For Service Station Application

    Product Details:

    Place of Origin: Zhejiang (CHINA)
    Brand Name: PASSION
    Certification: ISO 9001-2008, CE
    Model Number: 3/4", 5/8", 1"

    Payment & Shipping Terms:

    Minimum Order Quantity: 500m
    Price: 3/4" - 2.69USD/m.
    Packaging Details: Well packed by good and thick braided strap for export
    Delivery Time: within 25 days after we have received your advanced payment
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 150000m/month
    Contact Now
    Detailed Product Description
    Tube: NBR Cover: NBR / PVC
    Reinforcement: Braided Steel Wire Sizes: 5/8", 3/4", 1"
    Application: Fuel Dispenser In Gas Station Standard Length: 50m/ Roll
    Superiorities: Flexible / UV Resistance / Ozone Resistance / Excellent Aging Resistance Working Pressure: 30 Bar
    Bursting Pressure: 120bar Flexibility: Very Soft And Flexible
    Export To Countries: Columbia, Brazil, Spain, UK, Austrail, New Zealand, New Zealand, The Philippines, Thailand Color: Blue, Black, Red, Yellow And Green Etc
    Warranty: 1 Year



    Flexible Gasoline Pump Hose Fuel Dispensing Hose 5/8" 3/4" and 1" for Service Station Application



    Refer Standard: EN 1360:2005



    Hose Construction -


    Tube: NBR
    Reinforcement: Single High-strength wire braided.
    Cover: NBR / PVC

    Temperature: -40ºC to +70ºC

    Color: Black, Blue, Red and Green etc

    Application: For fuel dispensing pump applications, including gasoline, diesel, oxygenated fuels (up to a maximum of 15% oxygenated compounds), lubricating oil, and other mineral oil etc.

    Standard length: 20m, 50m (Random Length).



    Specifications:



    Item code Inner Diameter Outer Diameter Working Pressure Burst Pressure Length Measurement Weight
      inch mm mm bar psi bar psi m cbm/roll kg/m
    HPR-1  5/8’’ 15.9 25.4 30 450 120 1740 50 0.07 0.57
    HPR-2  3/4’’ 19 28 30 450 120 1740 50 0.08 0.65
    HPR-3  1’’ 25 35.5

    30

    450 120 1740 50 0.124 0.82



    One superiority of Paishun's Hose - Hose is very light.



    Hose weight:
    3/4 inch 0.61kg/m.
    1 inch 0.84kg/m.


    Apart from NBR rubber material, there are also other mateiral in hose composition, such as " carbon black, Dioctyl Phthalate and other material ".
    If the NBR material is too low and the other material is too high, the hose will be heavier.

    And too low proportion of NBR material also can cause the hose stiff problem in cold weather.

    The low proportion of NBR rubber material will also leads to hose low aging-resistance problem, the hose will be easy to crack.

    While the NBR proportion of our inner tube covers as high as 42% in hose inner tube and 40% in hose outer tube.
    This NBR proportion is high in fuel dispenser hose industrial.

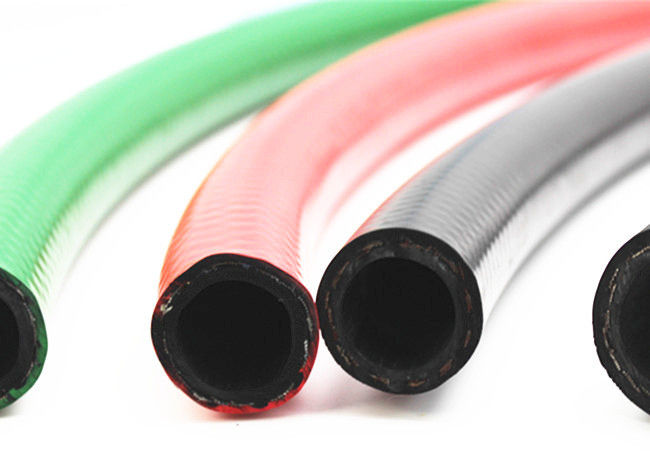

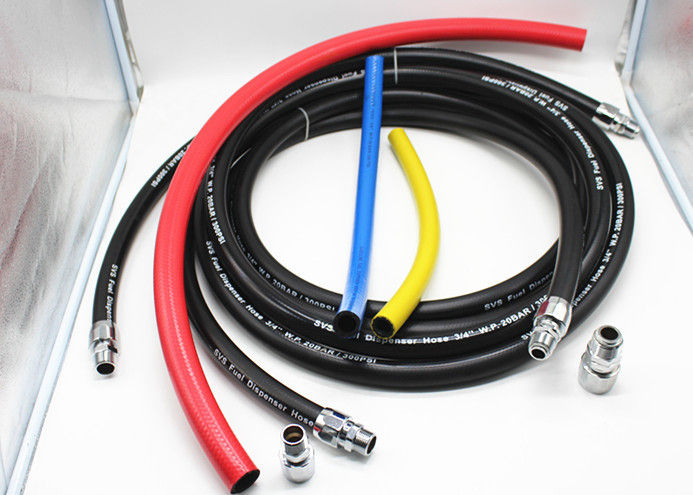

    Hose Pictures:



    Flexible Gasoline Pump Hose , High Temperature Rubber Hose For Service Station Application

    Flexible Gasoline Pump Hose , High Temperature Rubber Hose For Service Station Application

    Flexible Gasoline Pump Hose , High Temperature Rubber Hose For Service Station Application
