SAE100 R2 High Pressure Hydraulic Hose With Smooth Surface For Machinery Equipment

SAE100 R2 High Pressure Hydraulic Hose With Smooth Surface For Machinery Equipment

  • High Light

    Hydraulic Rubber Hose

    ,

    High Pressure Hydraulic Pipe

  • Application
    For Delivery Of Petroleum Or Water Base Hydraulic Fluids.
  • Inner Tube
    High Quality Synthetic Rubber
  • Outer Cover
    Smooth Surface Synthetic Rubber
  • Certification
    ISO 9001:2015, CE, Rohs
  • Temperature Range
    -40℃ ~ +100℃ (-40°F ~ +212°F)
  • Color
    Black, Blue Or As Your Request
  • Reinforcement
    2 Layers Of High Tensile Steel
  • Surface
    Smooth
  • Usage
    For Machinery Equipment Such As Excavator, Roller, Etc.
  • OEM
    Yes.
  • Place of Origin
    Zhejiang, China
  • Brand Name
    PASSION
  • Certification
    CE, ISO 9001:2015
  • Model Number
    SAE 100R2
  • Minimum Order Quantity
    500 meters
  • Price
    Negotiable
  • Packaging Details
    Colorful poly stripes or as your request.
  • Delivery Time
    28 days
  • Payment Terms
    T/T, L/C, Money Gram, PayPal, Western Union, MoneyGram, etc.
  • Supply Ability
    400,000 meters per month

SAE100 R2 High Pressure Hydraulic Hose With Smooth Surface For Machinery Equipment



SAE100 R2 Hydraulic Rubber Hose with Smooth Surface for Machinery Equipment


Our Advantages


1. Over 10 years of experience of producing hydraulic hoses.
2. Free Sample available.
3. Factory sale, prices, and quality are competitive.
4. Other sizes can be customized.
5. OEM acceptable, your words and logo can be printed on the hose as your request.
6. Customized packing method.
7, Complete line of test machines, test every batch of goods before shipped out.




Detail Information of  R2 Hose

Application: For delivery of petroleum and water-based hydraulic fluids.

Inner tube: Seamless oil resistant synthetic rubber.

Reinforcement: 2 high tensile steel wire braid.

Outer cover: Oil, weather, and abrasion-resistant synthetic rubber.

Temperature Range: -40℃ ~ +100℃ (-40℉ ~ +212℉)





Specification of R2 Hose



Part Number Size ID WD OD WP BP Min Bend Radius Weight
inch mm mm mm bar psi bar psi mm g/m
P03-2SN 3/16″ 4.8 11.7 13.7 415 6018 1650 23925 90 300
P04-2SN 1/4″ 6.4 12.5 14.5 400 5800 1600 23200 100 380
P05-2SN 5/16″ 8 14.5 16.7 350 5075 1400 20300 115 435
P06-2SN 3/8″ 9.5 16.6 19.2 330 4785 1320 19140 125 550
P08-2SN 1/2″ 12.7 19.8 21.8 275 3988 1100 15950 180 640
P10-2SN 5/8″ 16 23.2 25.4 250 3625 1000 14500 205 750
P12-2SN 3/4″ 19 26.9 29.9 215 3118 850 12325 240 925
P16-2SN 1″ 25.4 34.2 37.8 165 2393 650 9425 300 1290
P20-2SN 1 1/4″ 31.8 43.8 46.4 125 1813 500 7250 420 1895
P24-2SN 1 1/2″ 38.1 50.2 52.7 90 1305 360 5220 500 2120
P32-2SN 2″ 50.8 62.8 65.4 80 1160 320 4640 630 2765
P40-2SN 2 1/2″ 63.5 75.4 79.0 69 1000 276 4000 762 3730
P48-2SN 3″ 76.2 87.8 91.3 50 725 200 2900 900 3950


You can also download the specification here.

Smooth Surface Hydraulic Hose SAE 100R2.pdf

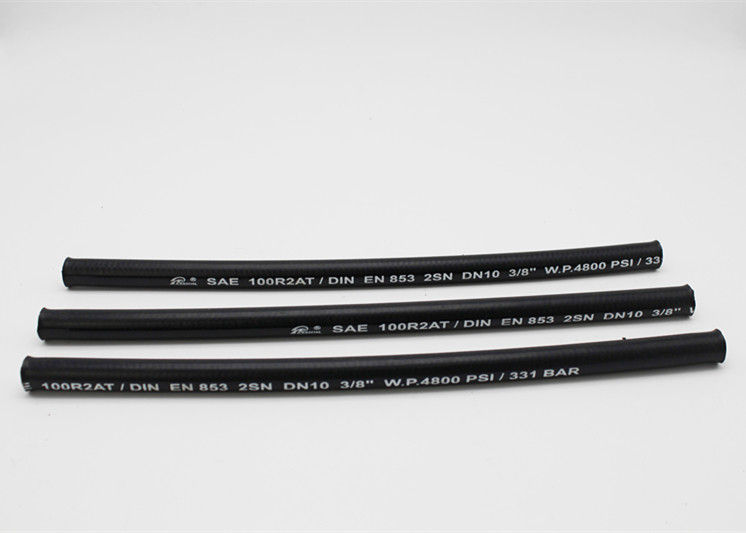

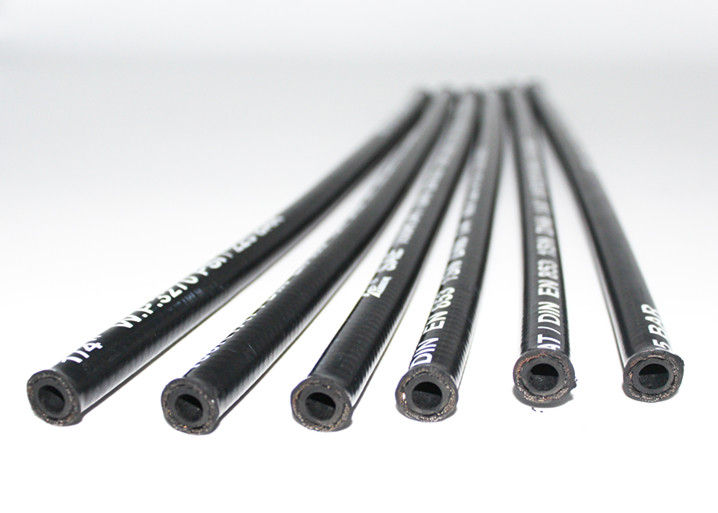

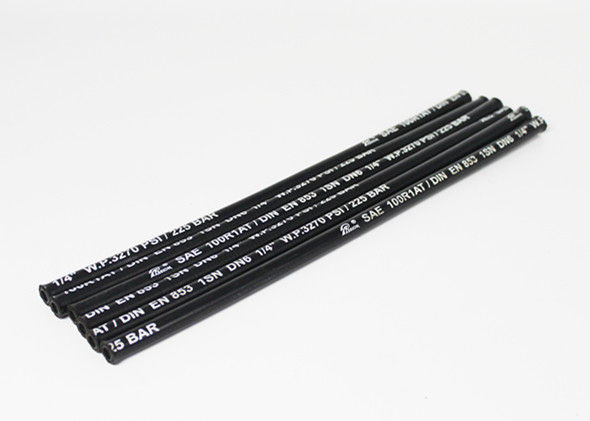

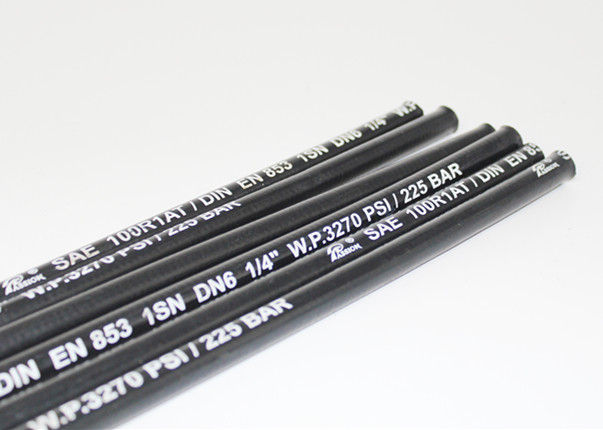

Photo of SAE R2 Hose

SAE100 R2 High Pressure Hydraulic Hose With Smooth Surface For Machinery Equipment 0



Packing and Shipping


Goods are well packed by colorful poly stripes or transparent OPP films. Can be shipped by air, by sea, by truck and by train.

SAE100 R2 High Pressure Hydraulic Hose With Smooth Surface For Machinery Equipment 1


Workshop




SAE100 R2 High Pressure Hydraulic Hose With Smooth Surface For Machinery Equipment 2







Other products we produce:

* Rubber Air/Water Gas/LPG Fuel Hoses
* Outer Braided Hose
* Plastic Hoses
* Other kinds of Rubber and Plastic Hoses



Application

For machinery equipment such as excavator, roller, etc.

SAE100 R2 High Pressure Hydraulic Hose With Smooth Surface For Machinery Equipment 3

Please feel free to contact us for any question or request!


PASSION FOR HOSE, PASSION FOR YOU!!!
